660nm & 850nm Dual Wavelength ｜ 12V 20W High Power ｜ Band-Pulse Control ｜ Patent Private Mold ｜ OEM/ODM Available

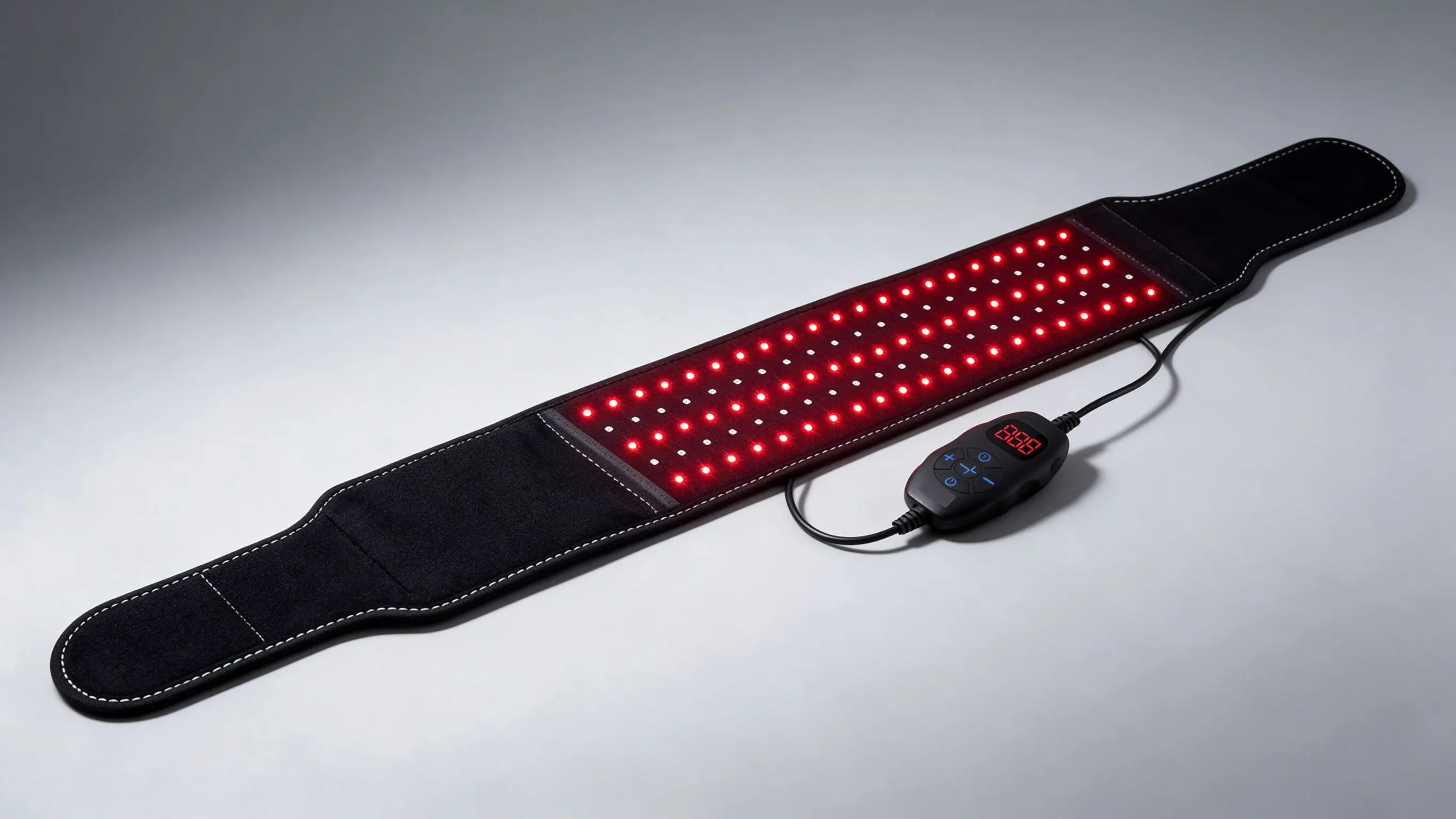

Full back, spine, lower back and waist in one wrap. 51.2" long × 7.08" wide with breathable OK fabric.
63×660nm + 42×850nm beads, each with 3 chips = 315 chips total. 20W output, 124.1mW irradiance.

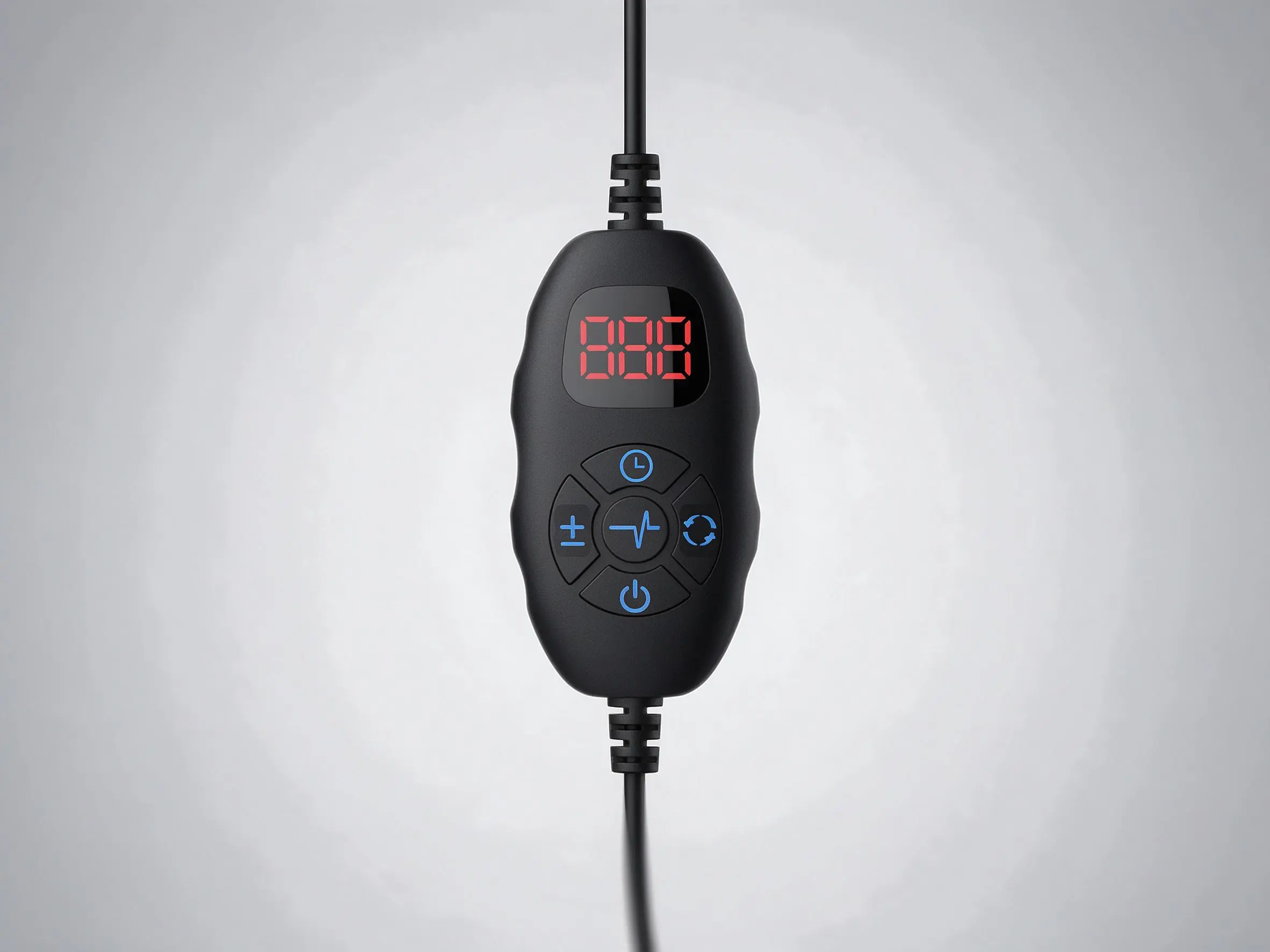

Band-pulse model switches ALL / 660nm / 850nm independently, 5 power levels, 10Hz / 40Hz pulse.
AC adapter included. Works with 12V power bank directly; 5V power bank via included boost cable.
Thermal imaging shows how WD-105 raises localized skin temperature within 20 minutes, helping you feel lighter, looser and more comfortable after long sitting, training or a tiring day.
Works on the epidermal layer, supports skin repair and surface comfort.
Penetrates deeper to subcutaneous and muscle tissue for deep relief.
Denser light output per bead, even irradiation across the whole 130cm panel.
20W max output with stable 124.1mW irradiance for effective therapy sessions.
The 130cm hook-and-loop belt wraps firmly around waist and lower back, and can be fixed on shoulder, knee or elbow with the adjustable 40cm slim belt included.
Sit on the sofa, work at your desk, or relax after training. The belt runs silently and the compact controller sits in the side pocket, so your therapy session fits into daily life.
| Model | Qcured-WD-105 |
|---|---|
| LED Count | 105 pcs (63×660nm + 42×850nm, 3 chips per LED) |
| Wavelength | 660nm + 850nm Dual Spectrum |
| Irradiance | 124.1 mW |
| Max Power | 20W |
| Input / Output | AC 100–240V / DC 12V 2A |
| Material | OK fabric (elastic hook & loop) + TPU |

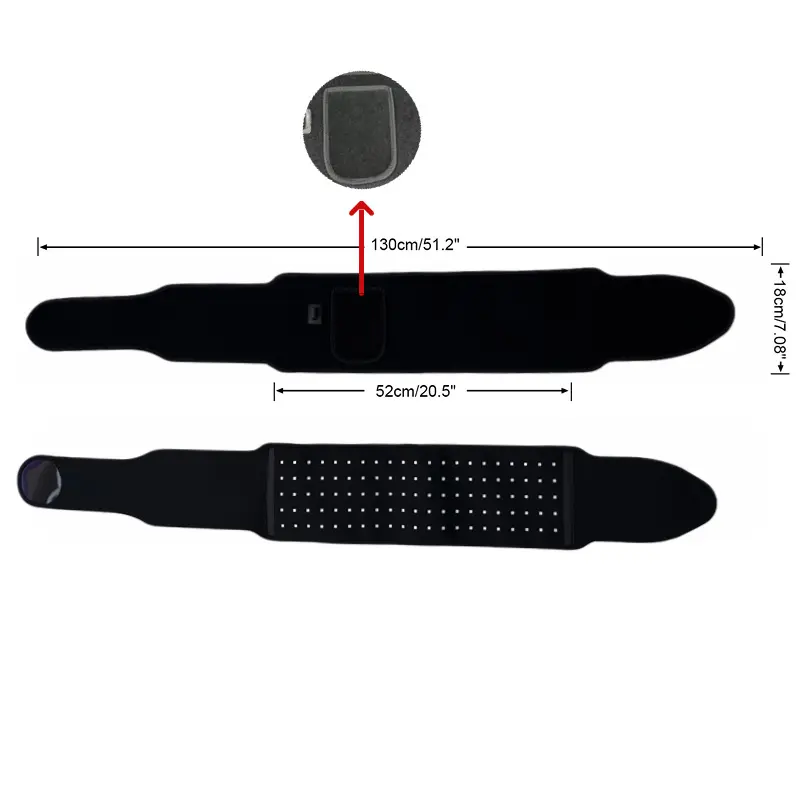

| Size | 1300 × 180 mm (51.2" × 7.08") |
| Gross Weight | 0.75 kg / pc |
| Controller Options | Conventional / Band-Pulse (two models) |
| Accessories | 5V-to-12V USB cable, power adapter, 40cm slim belt, user manual, PE bag, accessory box, universal gift box |
| Product Size | 130 × 18 cm |
|---|---|
| Inner Box | 28 × 22 × 6 cm |
| Single Carton | 29 × 23 × 7 cm |
| Master Carton | 64 × 58 × 25 cm, 20 pcs / carton, 15 kg |
| 20GP (est.) | ≈ 6,040 pcs |
| 40HQ (est.) | ≈ 14,660 pcs |

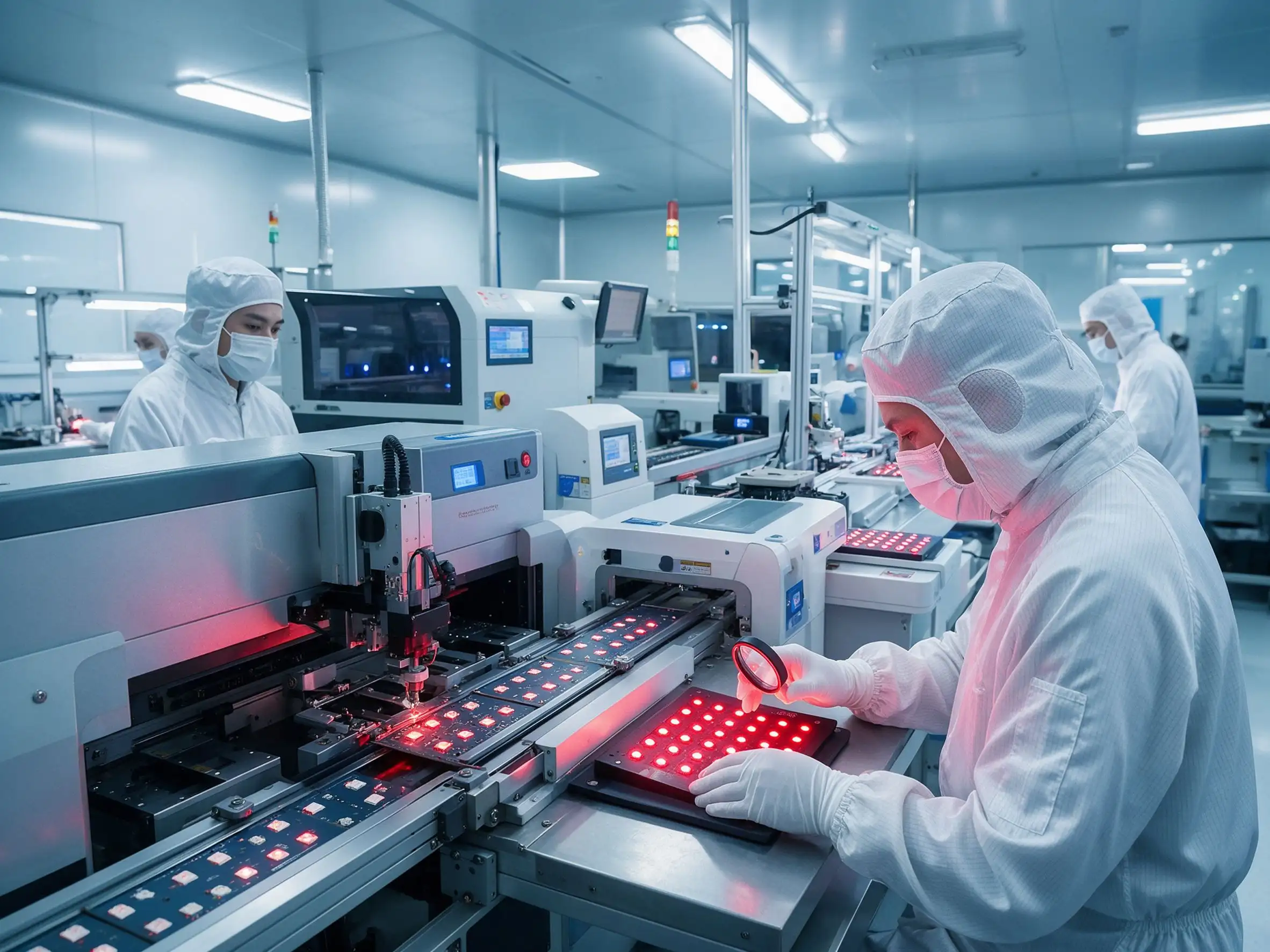

QCURED owns LED bead packaging, belt assembly and final testing lines. WD-105 is a patent private-mold product — lower copy risk for your brand.
A: No. WD-105 is externally powered, which keeps it lighter and avoids UN38.3 battery shipping documents for air freight. Use the included 12V adapter, a 12V power bank directly, or a 5V power bank with the included 5V-to-12V boost cable.
A: The Conventional model handles power, timer and pulse frequency. The Band-Pulse model adds independent band switching (ALL / 660nm / 850nm). Tell us your target market and we will recommend the right one.
A: Yes, on the Band-Pulse model. You can run all bands together for maximum coverage, or switch to red-only or near-infrared-only per your protocol.
A: The controller offers 5 / 10 / 15 / 20 / 25 / 30 minute timers, plus ON (continuous) mode. Default on power-on is 20 minutes.
A: Yes. We support OEM on the belt surface, controller and gift box, with optional multilingual user manuals. Small-batch customization and drop-shipping are welcome.
A: Samples ship in about 3 days. Bulk production is usually 15–20 days, subject to factory confirmation and order quantity.
A: The total length is 130cm with elastic hook-and-loop closure, fitting most waist sizes. A 40cm slim belt is included for knee, elbow or shoulder fixation.
Request wholesale pricing, free sample, or OEM customization today. We reply within 12 hours on workdays.
