A factory-direct red light therapy panel built for skincare brands, wellness distributors, physiotherapy clinics and e-commerce retailers. Five clinically-studied wavelengths in one compact device — order from a single sample, customize your brand, and scale with QCURED's in-house manufacturing and quality control.
Verified parameters for sample evaluation and bulk purchase confirmation.
Each feature is engineered around what your end customers experience and what you, as a buyer, have to support.

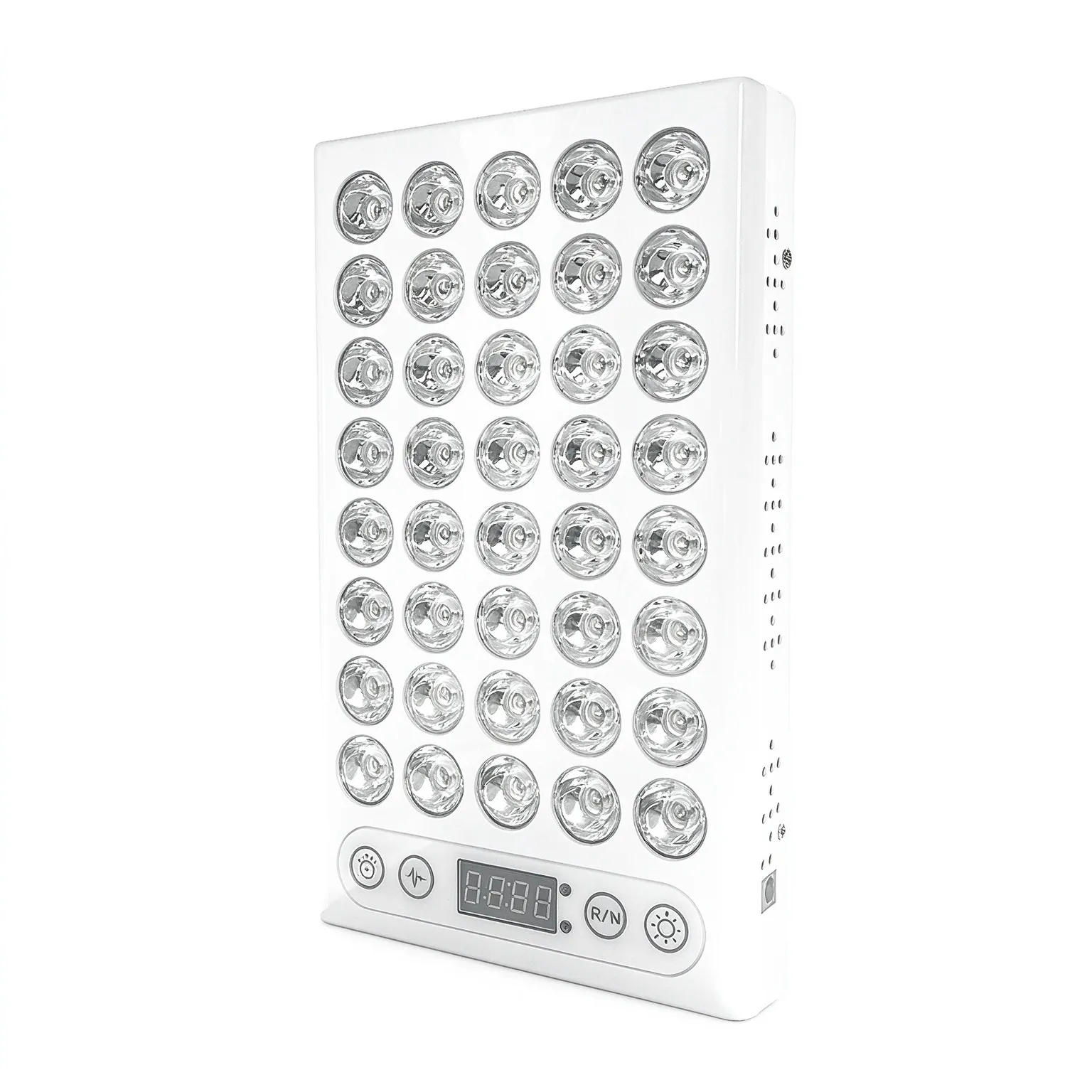

The panel combines 630nm, 660nm, 810nm, 830nm and 850nm in a 40-LED dual-color interleaved layout, so every wavelength is distributed evenly across the panel with no local hotspots. Red wavelengths (630/660nm) are absorbed mainly by surface tissue; near-infrared wavelengths (810/830/850nm) reach deeper. One SKU lets you serve skin-rejuvenation, beauty-spa and sports-recovery segments at the same time.
Business value for brands & distributors: cover different customer groups with one existing platform — no new tooling, no new MOQ — and expand your product line faster.

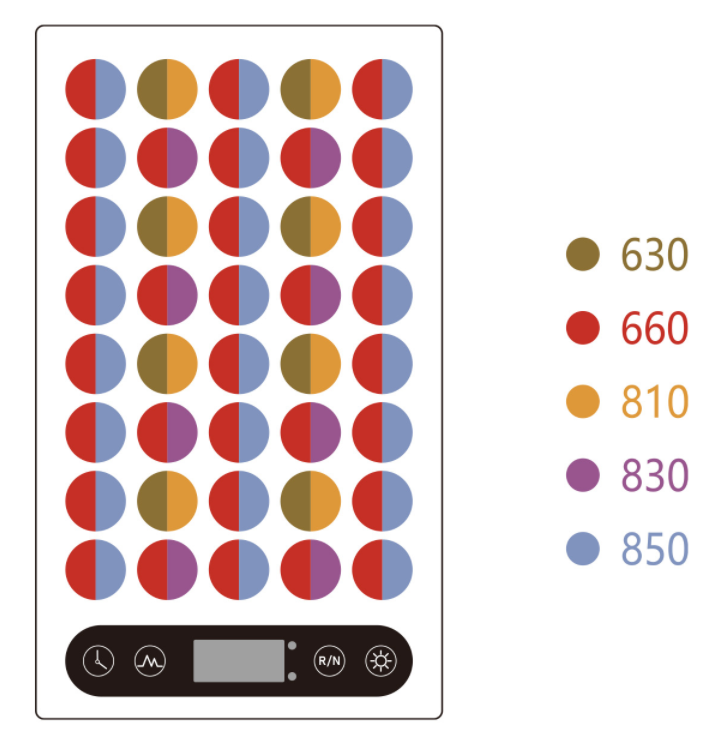

Interleaved 630/660/810/830/850nm LED array layout
The 40 high-grade LED beads have a theoretical total power of 200W, while the factory limits actual rated output to 60W. This controls temperature rise, keeps irradiance stable at 145 mW/cm², and protects the 100,000-hour lifespan.
Business value: fewer "too hot" complaints, lower return rates, longer device life that justifies your retail price.6-step timer (5–30 min) and 6-level pulse (10–587Hz) are controlled directly on the device with physical buttons and a digital display. No remote control to lose, break or replace.
Business value: remote controls are the #1 lost accessory and a top spare-part after-sales issue — this design removes the problem at the source.Flicker-free driving circuitry and an EMF reading of 0 at 3 inches make the panel comfortable for long sessions in homes, beauty salons, gyms and clinics.
Business value: a stronger compliance story for commercial and professional buyers, and fewer sensitivity complaints from end users.Panel size 235×140×30mm with package size 350×250×90mm. Light enough for home storage, portable enough for travel, and small enough for tight e-commerce carton logistics.
Business value: lower freight cost per unit, more units per pallet, and a product your end customers can actually store and carry.Powered by DC 12V low-voltage input with a plug matched to your target market (US/EU/UK/AU options available on request). Low voltage reduces safety risk for end users and simplifies market entry documentation.
Business value: easier market-entry discussions with importers, and a safety story that supports your listing and compliance review.See how end users and professional settings apply this compact 5-wavelength device — at home, at the desk and in commercial care rooms.
Held close to the skin on the sofa or in the bedroom. The 1.8 kg body and panel-built controls make this hand-held red light therapy panel a natural fit for daily at-home use.
Set on a desktop stand at the desk, bedside or vanity. The compact 235×140×30mm footprint keeps the workspace clean while 145 mW/cm² irradiance works at 3 inches.
Applied by professionals in beauty salons, spas and therapy rooms. Flicker-free driver, low EMF and stable irradiance support repeated commercial sessions.
Whether you start with one sample or a full private-label program, QCURED supports it with in-house R&D, SMT production and a 1-week prototyping cycle.
Clear, traceable parameters for sample evaluation, engineering review and bulk purchase confirmation.
| Item | Parameter |
|---|---|
| Wavelength | 5 Wavelengths: 630 / 660 / 810 / 830 / 850 nm |
| No. of LED Beads | 40 beads (dual-color interleaved array) |
| LED Power (total) | 200W |
| Output Power (rated) | 60W |
| Input Voltage | DC 12V |
| Irradiance at 3 inches | 145 mW/cm² |
| Beam Angle | 140° |
| Timer | 5 / 10 / 15 / 20 / 25 / 30 min |
| Pulse | 10 / 40 / 73 / 146 / 293 / 587 Hz |
| Flicker-Free | Yes |
| Remote Control | No (panel-built buttons) |
| EMF at 3 inches | 0 |
| Size | 235 × 140 × 30 mm |
| Package Size | 350 × 250 × 90 mm |
| Gross Weight | 1.8 kg |
| Operating Temperature | -20°C ~ 40°C |
| Lifespan | 100,000 hours |
| Warranty | 1 year |

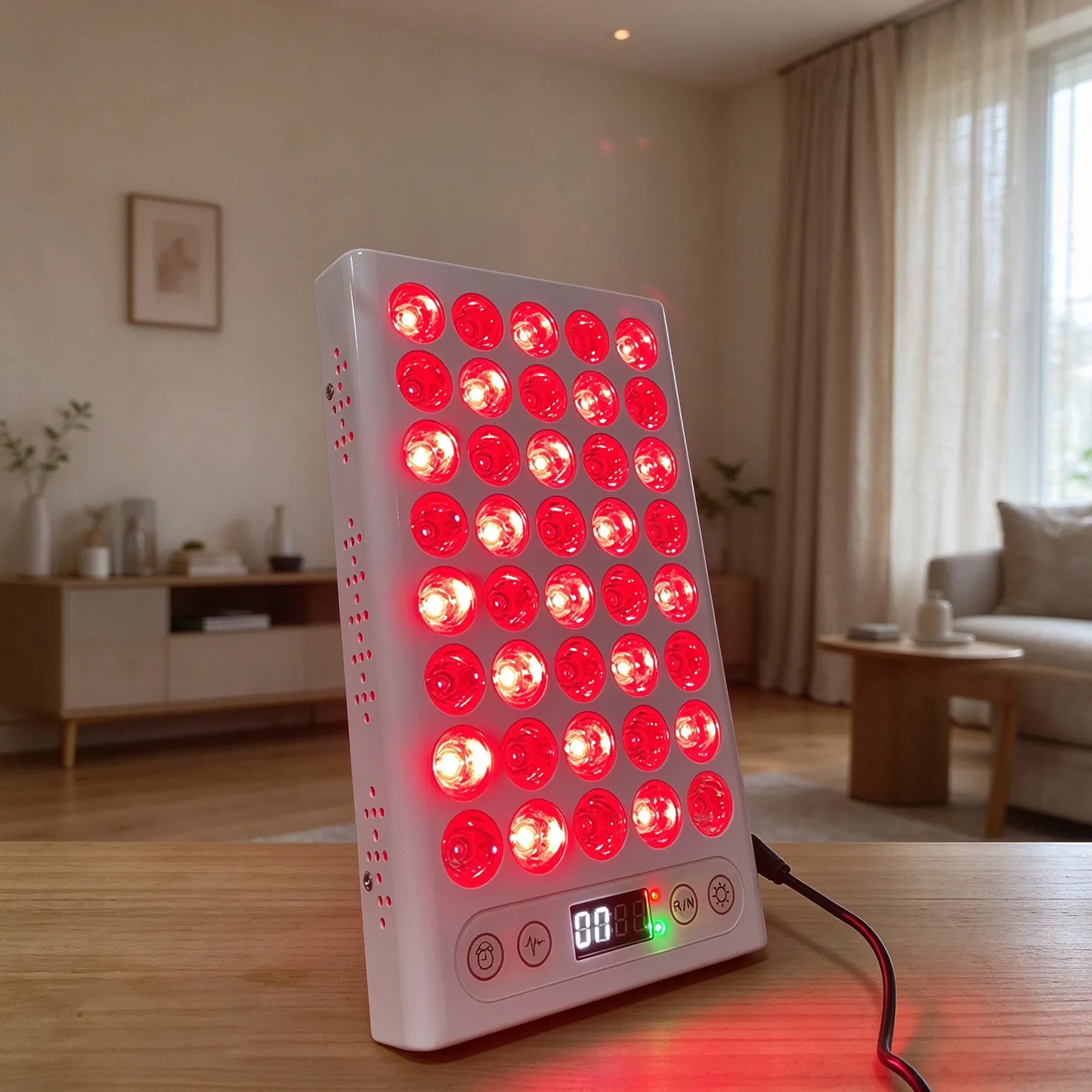

Official specification card for this panel model
QCURED is a vertically integrated manufacturer (ISO 13485 & MDSAP certified by BSI) with full in-house SMT mounting, optical calibration and burn-in aging. From incoming components to outgoing cartons, every step is traceable.
LED wavelength & power-supply parameters verified before production.
AOI + X-ray checks on every board, zero cold-solder joints.
Light-on, timer and pulse functions checked unit by unit.
Long-time burn-in simulates real working conditions before shipping.
Appearance, function, packaging and plug spec — AQL 2.5, 100% pass.
Product datasheet & specification card
User manual (multi-language available)
Packaging & label design source files
Power adapter / cable specification
Irradiance & EMF test data (test conditions stated)
High-resolution product photos & operation video
CE / FCC / RoHS certificates (model-matched, verifiable)
Batch inspection & traceability records
Trusted by 25,000+ brands across beauty, wellness, fitness and clinic channels.
A skincare brand expanded its device line without new tooling. Starting from a single sample unit, they moved to branded packaging, multi-language manual and a private-label batch — one SKU serving multiple target customer groups.
Outcome: faster product-line expansion, lower entry MOQ, one factory point of contact for the whole launch.
A multi-market distributor stocked neutral units with market-matched plugs for resale across e-commerce and retail. Panel-built buttons and flicker-free driver meant fewer accessory complaints and simpler after-sales.
Outcome: lower spare-part burden, compact carton for combined freight, one-year warranty backed by the factory.
A therapy and spa chain ordered multiple units for room-based sessions. Stable 145 mW/cm² irradiance, low EMF and long aging test at the factory supported daily commercial use.
Outcome: consistent performance across units, batch inspection records for internal quality review.
